EPDM Rubber Flooring For Kids Play Area
TOPFLOOR , the Seamless Safety Flooring

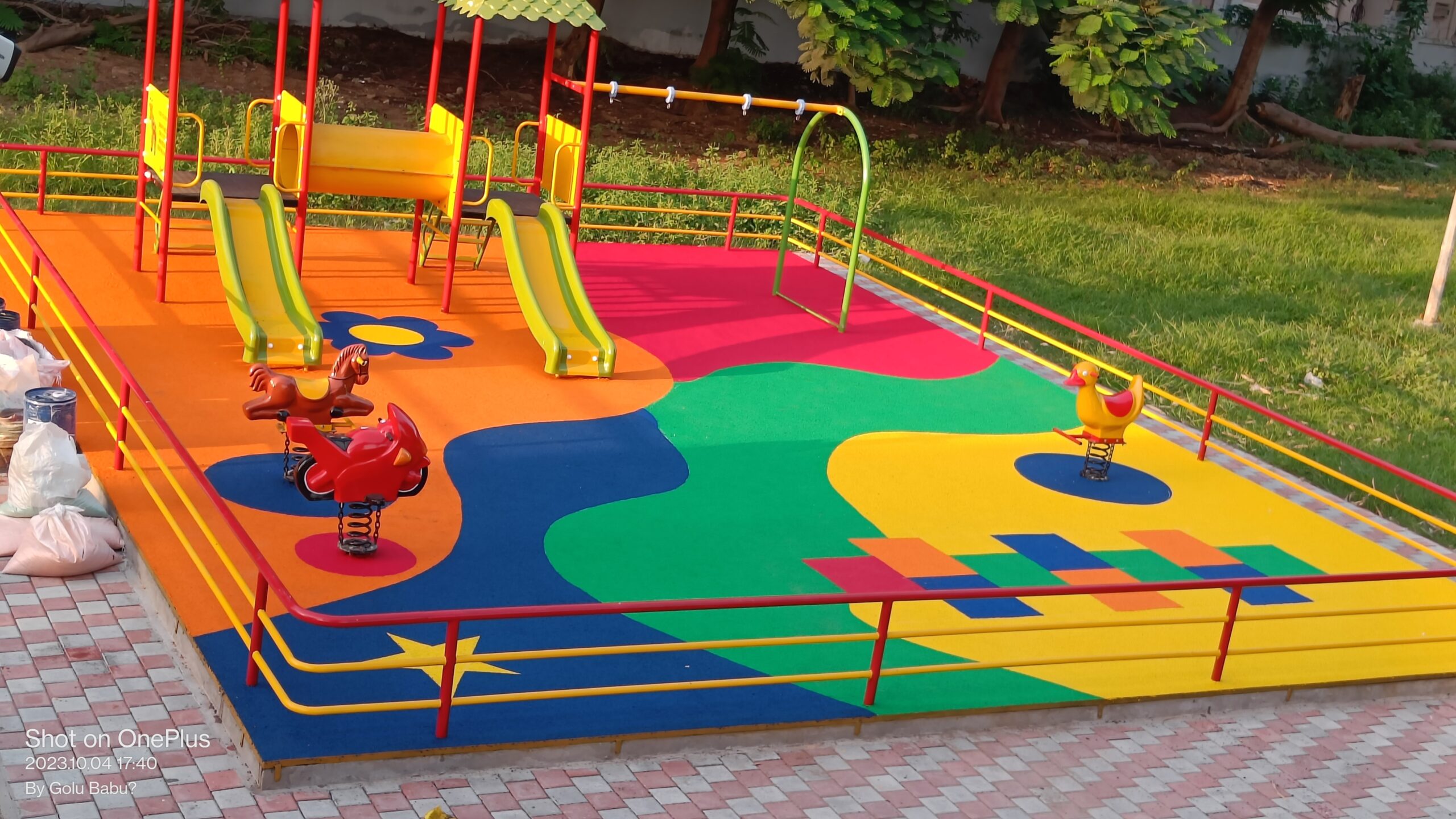

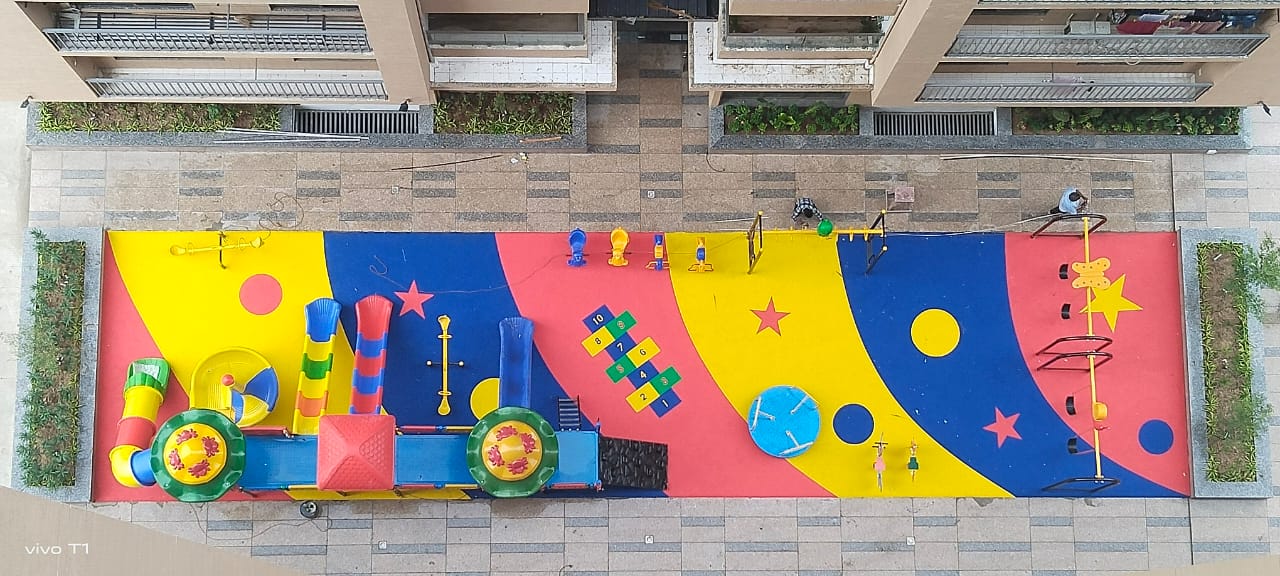

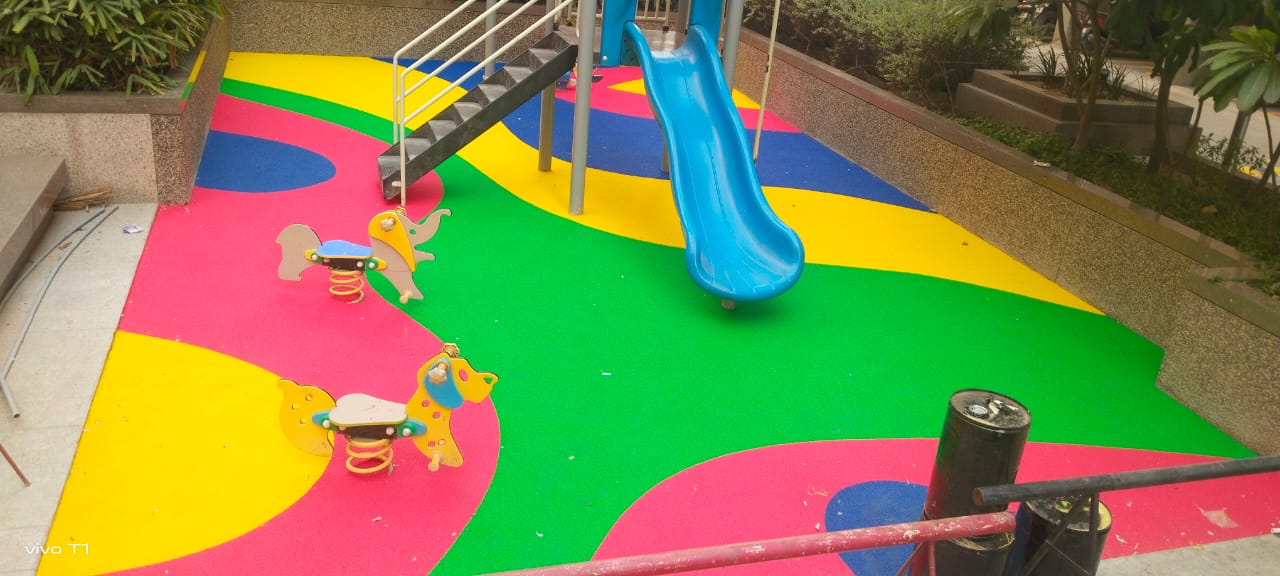

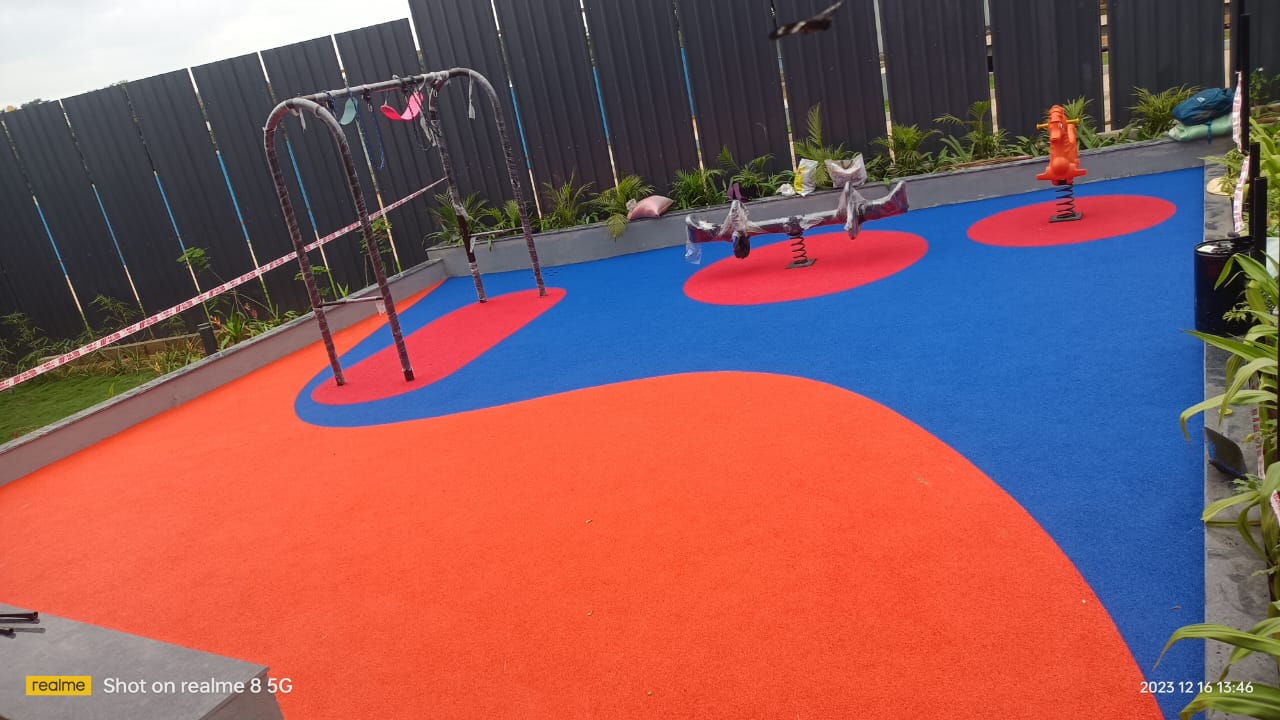

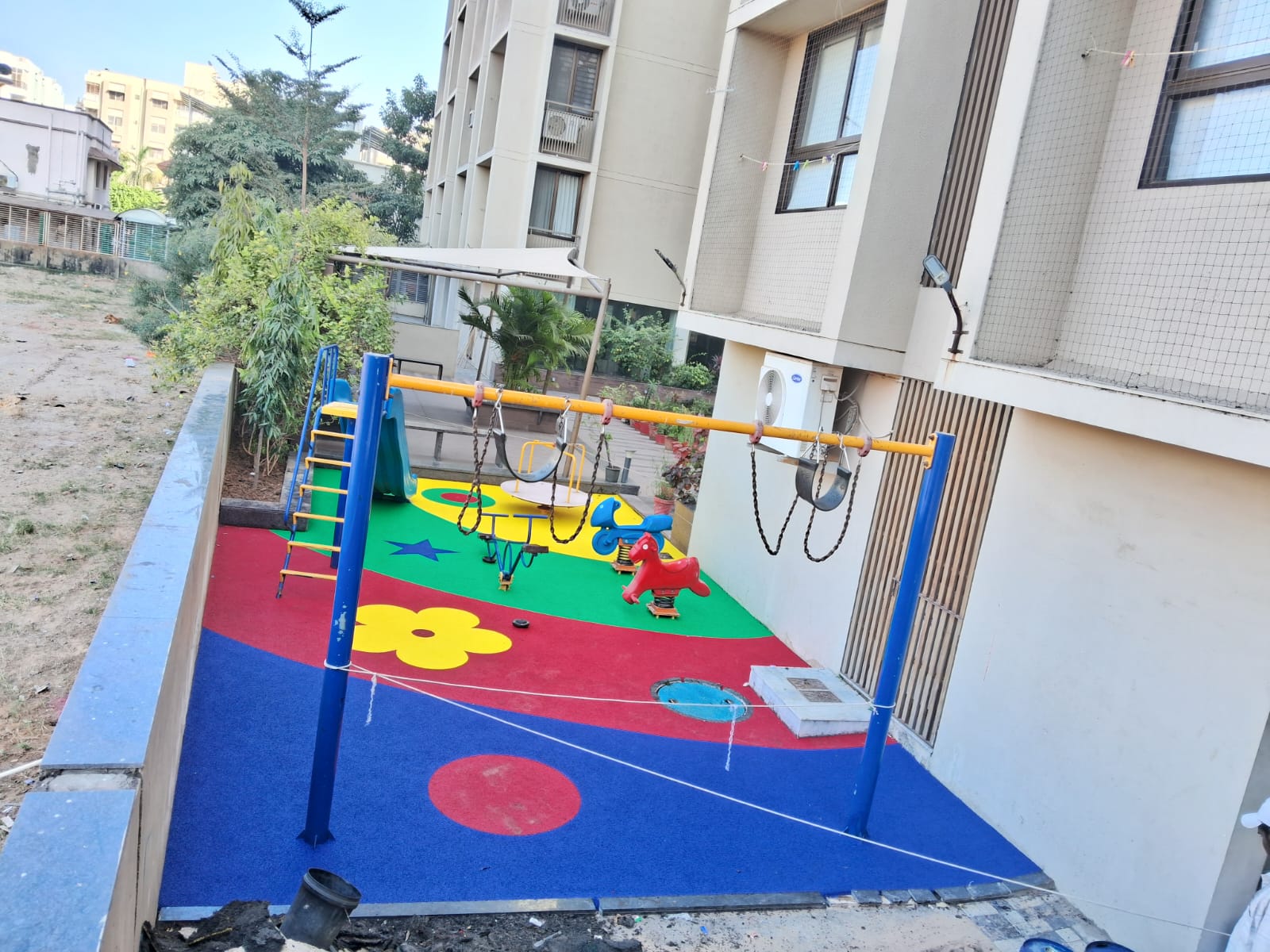

TOPFLOOR is the seamless floor covering for impact protection, applied in situ. Its versatility is as unsurpassed as the design scope it offers, TOPFLOOR safety flooring can be applied to smooth, curved or slanting surfaces to create diversified play environments, TOPFLOOR adjusts to the tiniest uneven patches. creating a smooth, seamless safety surface. Thanks to its water permeability, TOPFLOOR can be used again quickly after it has rained. TOPFLOOR complies with Standard safety surfaces and can provide protection from a maximum fall height of three metres,
Color Options
- EPDM wear layer, Installed in situ.
- SBR base layer, Installed in situ with precisely adjustable impact protection height
- Asphalt / Concrete surface
- Natural subsoil
Specification
Thickness(mm)
EPDM : SBR ratio
20 MM
14 MM : 6 MM
25 MM
19 MM : 6 MM
30 MM
24 MM : 6 MM
35 MM
29 MM : 6 MM
40 MM
34 MM : 6 MM
About system
Material
Wear layer consisting of solid-coloured EPDM granules mixed with a PU bonding agent; base layer
consisting of SBR granules mixed with a PU bonding agent.
Composition
Dual-layer construction consisting of wear layer and elastic
base layer.
Colours
25 colours and tieir combinations.
Application Areas
Children’s playgrounds,, outdoor swimming poolsh school-yards, etc., wherever ttiere is an increased
risk of injury through falling.
Wear Layer
Thickness : : 6 mm
Elastic Base Layer:
Thickness : 15- 40 mm
Installation
The unbound sub-base must be compacted to ensure that it is stable and crush-resistant.
Installation only by skilled . technicians.
